JINKO SOLAR TIGER NEO 48QL6-DB 470W
Jinko Tiger Neo 48QL6-DB 470W — 1500V Full Black / Mono-facial / Dual Glass / EVO2A The Jinko Solar Tiger Neo 48QL6-DB 470W is Lees meer
- Vermogen
- 470W (range 460-485W)
- Spanning
- 1500V
- Frame
- Full Black
- Connector
- JK03M
Jinko Tiger Neo 48QL6-DB 470W — 1500V Full Black / Mono-facial / Dual Glass / EVO2A

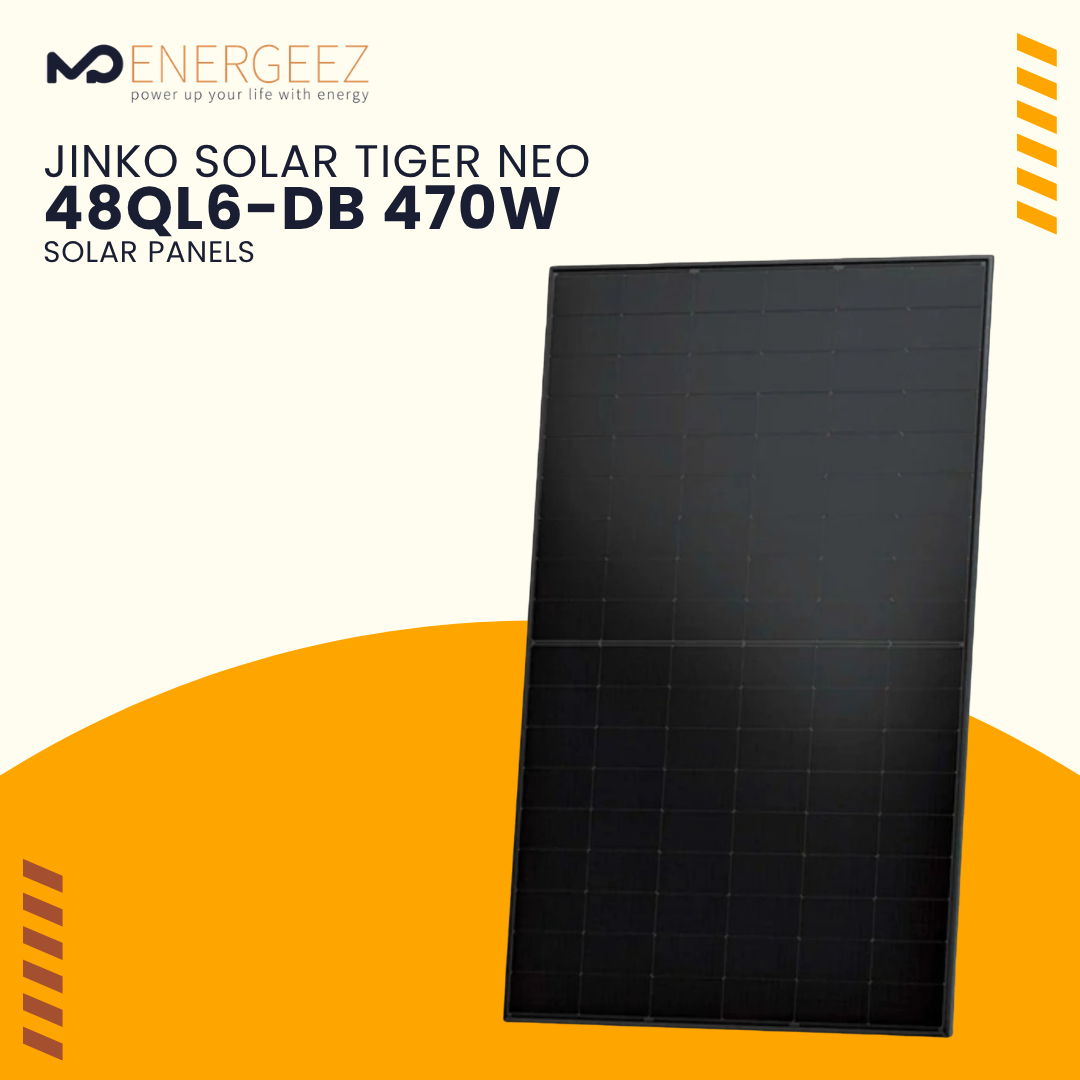

The Jinko Solar Tiger Neo 48QL6-DB 470W is an all-black N-type TOPCon dual-glass module with Stäubli MC4-EVO2A connectors, rated for 1500V systems. Its full-black, mono-facial dual-glass design combines premium aesthetics with the durability of glass-glass construction — a strong choice for design-conscious residential rooftops.
| Model | JKM470N-48QL6-DB (Tiger Neo III N-type) |
| Rated Power (Pmax) | 470 Wp |
| Cell Technology | N-type Mono TOPCon 3.0 |
| Module Design | Full Black, mono-facial, dual-glass |
| Module Efficiency | Up to ~24.27% |
| Max. System Voltage | 1500 V |
| Connectors | Stäubli MC4-EVO2A |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | ~24.4 kg |
| Temperature Coefficient (Pmax) | -0.26 %/°C |
| Price | €0.139/Wp (from 1–2 containers) |
Key Advantages
- Full-black aesthetic — premium look for residential rooftops
- N-type TOPCon 3.0, up to ~24.27% efficiency
- Dual-glass construction for durability and long service life
- 1500V system voltage and Stäubli EVO2A connectors
- Compact 48-cell format for space-constrained roofs
