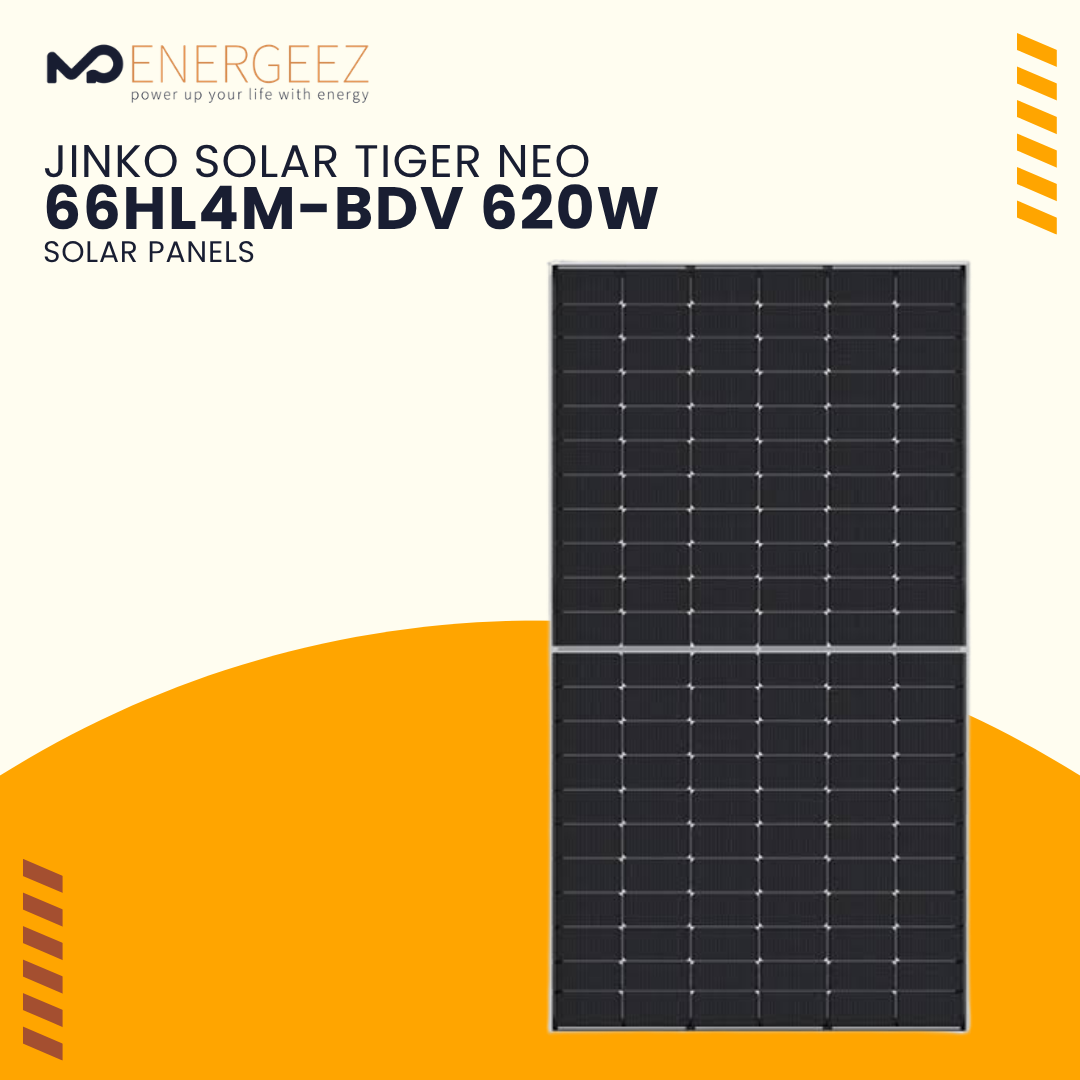

JINKO SOLAR TIGER NEO 66HL4M-BDV 620W
Jinko Tiger Neo 66HL4M-BDV 620W — 1500V Bifacial / Silver Frame The Jinko Solar Tiger Neo 66HL4M-BDV 620W is a high-power N-type TOPCon Read more
Jinko Tiger Neo 66HL4M-BDV 620W — 1500V Bifacial / Silver Frame
The Jinko Solar Tiger Neo 66HL4M-BDV 620W is a high-power N-type TOPCon bifacial dual-glass module built for commercial and utility-scale projects. With 132 half-cells and ~22.95% efficiency, it delivers high power density that cuts module count and balance-of-system costs on large arrays.
| Model | JKM620N-66HL4M-BDV (Tiger Neo N-type) |
| Rated Power (Pmax) | 620 Wp |
| Cell Technology | N-type Mono TOPCon, 132 cells (2×66) |
| Module Design | Bifacial, dual-glass (2.0 mm / 2.0 mm), silver frame |
| Module Efficiency | ~22.95% |
| Bifaciality Factor | ~80% ±5% |
| Dimensions | 2382 x 1134 x 30 mm |
| Weight | 33.4 kg |
| Mechanical Load | 5400 Pa front (snow) / 2400 Pa rear (wind) |
| Max. System Voltage | 1500 V |
| Warranty | 12-year product + 30-year linear performance (~88% at year 30) |
| Price | €0.119/Wp (from 5–9 containers) |
Key Advantages
- High 620 Wp output — fewer modules and lower BOS cost on large projects
- ~22.95% efficiency for strong kWh per m² where area is constrained
- N-type TOPCon with low LID/LETID and strong weak-light yield
- Bifacial dual-glass (~80% bifaciality) for rear-side generation
- Robust glass-glass build for utility and commercial environments
